Windows Phone 7 and WS-Trust

A question that I often hear these days is: “Can I connect a Windows Phone 7 device to my existing enterprise services?”.

Well – since most of my services are typically issued token based, this requires support for WS-Trust and WS-Security on the client. Let’s see what’s necessary to write a WP7 client for this scenario.


First I converted the Silverlight library that comes with the Identity Training Kit to WP7. Some things are not supported in WP7 WCF (like message inspectors and some client runtime hooks) – but besides that this was a simple copy+paste job. Very nice!

Next I used the WSTrustClient to request tokens from my STS:

private WSTrustClient GetWSTrustClient()
var client = new WSTrustClient
new WSTrustBindingUsernameMixed
new EndpointAddress(…/issue.svc/mixed/username”
new UsernameCredentials
(_txtUserName.Text, _txtPassword.Password));

private void _btnLogin_Click(object sender, RoutedEventArgs e)
_client = GetWSTrustClient();

var rst = new RequestSecurityToken(WSTrust13Constants.KeyTypes.Bearer)
AppliesTo =
new EndpointAddress(”

_client.IssueCompleted += client_IssueCompleted;

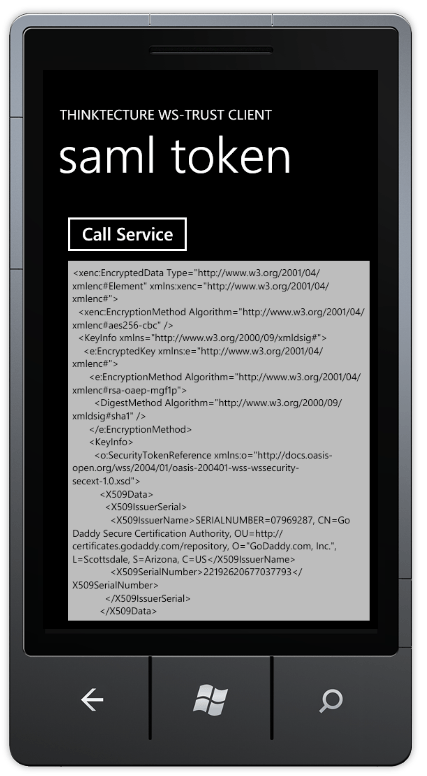

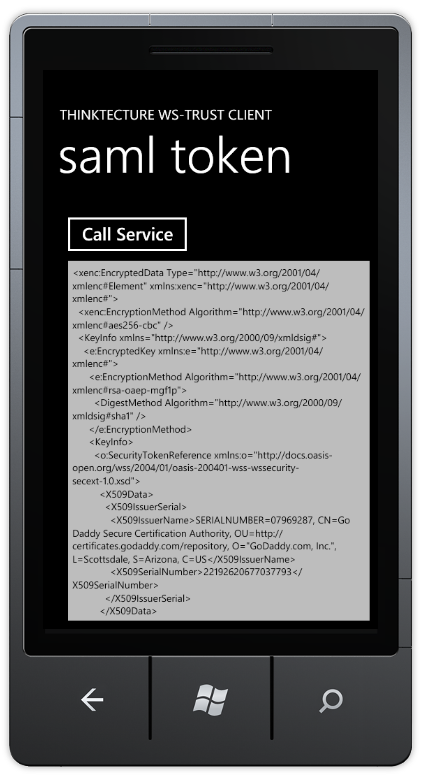

I then used the returned RSTR to talk to the WCF service.

Due to a bug in the combination of the Silverlight library and the WP7 runtime – symmetric key tokens seem to have issues currently. Bearer tokens work fine. So I created the following binding for the WCF endpoint specifically for WP7.


  <binding name=mixedNoSessionBearerBinary>    <security authenticationMode=IssuedTokenOverTransport              messageSecurityVersion=WSSecurity11 WSTrust13 WSSecureConversation13 WSSecurityPolicy12 BasicSecurityProfile10>      <issuedTokenParameters keyType=BearerKey />    </security>    <binaryMessageEncoding />    <httpsTransport/>  </binding></customBinding>

The binary encoding is not necessary, but will speed things up a little for mobile devices.

I then call the service with the following code:

private void _btnCallService_Click(object sender, RoutedEventArgs e)


    var binding = new CustomBinding(        new BinaryMessageEncodingBindingElement(),        new HttpsTransportBindingElement());

    _proxy = new StarterServiceContractClient(


        new EndpointAddress(“…”));

    using (var scope = new OperationContextScope(_proxy.InnerChannel))


        OperationContext.Current.OutgoingMessageHeaders.Add(new IssuedTokenHeader(Globals.RSTR));        _proxy.GetClaimsAsync();
